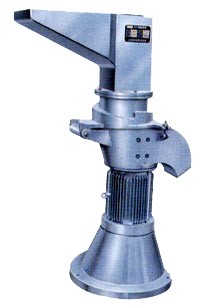

| 産品名稱：Rough mill |
|
 |
|
|
| Main Uses : |
| This machine is applied by the industries of pharmaceutics, chemical, metallurgy, foodstuf, and architecture etc. It specially grids the hard and solid granule materials including the breaking of plastics materials and copper wires, as well as the pre-treatment coordinated machine for fine grinding process. |
|
| Specialty : |
| Accepting vertical grinding mechanism, this machine canprocess and material without being limited by the viscosity, hardness, or softness of the said materials. |
|
| Working Method : |
| Any raw material, being feed into the grind chamber through the upper feeder, striked and impacted by the knife-edges and knife stand, cut and grinded simultaneously by the revolving and fixed knifes, automatically runs to the exist by the centrifugal force of revolving object. |
|
| Technical Paramerters : |
|
|
|
Production Capacity |
100-500 kg/h |
Mainshaft Speed |
940 r/min |
| Feed Pellet Size |
100mm |
Power |
4kw |
|
Exit Pellet Size |
0.5-20mm |
Work Noise |
<80 decibel |
|
Overall SizeMM(LxwxH) |
1080x530x1460 |
Weight (kg) |
480 | |
|
|
|
|
